MOLEX 3 Way Receptacle Plug - 03-09-1031

MOLEX 3 Way Receptacle Plug - 03-09-1031

save 75%

Product ID : 09520-0001
Price : 0.36 USD (Change Currency)
RRP: 1.45 USD
(less discount 1.09 USD)
Availability : In Stock

Add To Cart
Freight Quote
We are currently offline, please leave us a message



About MOLEX 3 Way Receptacle Plug - 03-09-1031

MOLEX 3 Way Receptacle Plug. Brand New


Unit Dimensions :3.2W x 2.6D x 0.6H cms Condition :New
Shipping Weight :0.002 kg Location :Australia
Packing Terms :Plastic Bag Shipping Terms :Ex Works
Warranty :No Warranty Product Type :Connectors and Plugs


MOLEX 3 Way Receptacle Plug - 03-09-1031 Specifications / Features


  • RECEPTACLE, 0.093" 3WAY
  • Ways, No. of:3
  • Area, wire size min:0.597mm���²
  • Area, wire size max:1.68mm���²
  • Colour:Clear
  • Diameter, cable max:4.06mm
  • Approval Bodies:UL, CSA
  • Current rating:12A
  • Flammability rating:UL94V-2
  • Material:Nylon
  • Poles, No. of:3
  • Temp, op. max:105���°C
  • Temp, op. min:-40���°C
  • Voltage rating, AC:250V
  • Voltage, withstand:3mV
  • Voltage, working:250V
  • Cut-out size, panel:21.34x7.92mm
  • Dielectric strength:1500V/m
  • Dielectric strength, VAC:1500V
  • Force, de-mating:0.027N
  • Force, mating:0.034N
  • Housing type:Receptacle
  • Pitch:5.03mm
  • Pitch, lead:5.03mm


MOLEX 3 Way Receptacle Plug - 03-09-1031 - Reference Images

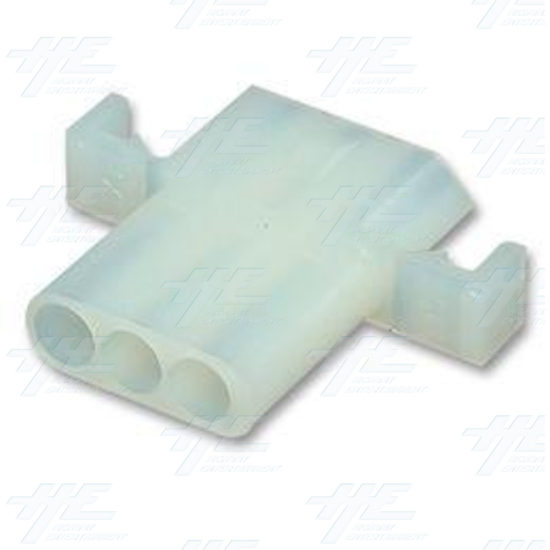

MOLEX 3 Way Receptacle Plug - 03-09-1031 - Plug
MOLEX 3 Way Receptacle Plug - 03-09-1031 - Plug
