Multisystem Colour Corrector (CCR-8)

Multisystem Colour Corrector (CCR-8)



Product ID : 02007-0001
Price : 190.00 USD (Change Currency)
Availability : Please Ask

Add To Cart
We are currently offline, please leave us a message



About Multisystem Colour Corrector (CCR-8)

For adjusting video quality when viewing or copying video tapes or discs.


Location :Australia Product Type :Converters


Multisystem Colour Corrector (CCR-8) Specifications / Features


Features:
  • NTSC 3.58/NTSC4.43/PAL/PAL N/PAL M/SECAM input auto detection.
  • Doesn't convert Signal: Pal input = Pal Output, NTSC input = NTSC output.
  • Digital decoding and comb filter eliminate color noise and ensure best picture quality.
  • On-Screen display menu control.
  • R,G,B adjustment for achieving a correct white balance.
  • Restore sync and color burst for rock solid copies.
  • Adjustable controls on Brightness, Contrast, Color, Sharpness and Tint.
  • Direct input source select.

Specifications:
  • Inputs: Composite video (RCA style phono jack) 75 ohm, unbalanced, 1Vp-p
  • S-video(4 pin mini DIN)
  • Y: 1 Vp-p, 75 ohms,unbalanced
  • C: 0.286 Vp-p burst signal, 75 ohms
  • Outputs:
  • Inputs: Composite video (RCA style phono jack) 75 ohm, unbalanced, 1Vp-p
  • S-video(4 pin mini DIN)
  • Y: 1 Vp-p, 75 ohms,unbalanced
  • C: 0.286 Vp-p burst signal, 75 ohms
  • Resolution: 550 lines of resolution
  • Adjustment Range:
  • Tint +/- 30 degrees
  • Color +/- 6db/-12db
  • Sharpness +/- 3db
  • Brightness +/- 12%
  • Contrast +/- 2db
  • Video S/N ratio: 55db
  • Blue/Green/Red: +3 db/-10db
  • Power: 7.5V DC 500mA center positive

For more information including freight calculation and online ordering, please click here: http://www.converters.tv/products/converters/colour_correction/56.html


Multisystem Colour Corrector (CCR-8) - Actual Images

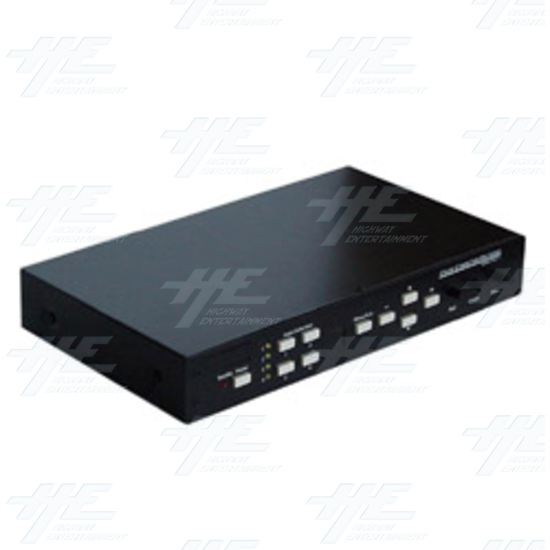

Multisystem Colour Corrector (CCR-8) - Full view
Multisystem Colour Corrector (CCR-8) - Full view

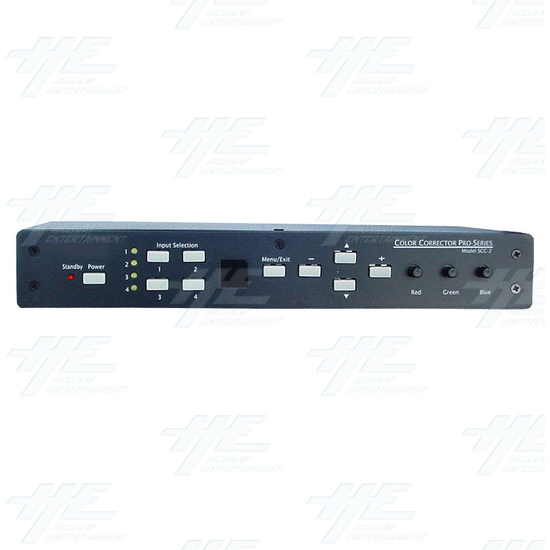

Multisystem Colour Corrector (CCR-8) - Front view
Multisystem Colour Corrector (CCR-8) - Front view

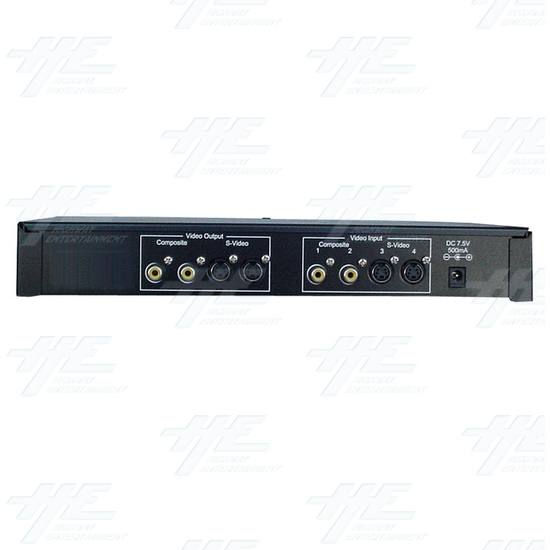

Multisystem Colour Corrector (CCR-8) - Back view
Multisystem Colour Corrector (CCR-8) - Back view

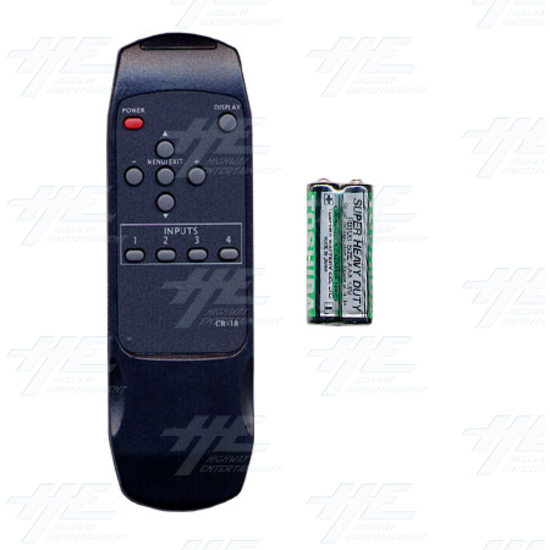

Multisystem Colour Corrector (CCR-8) - Remote
Multisystem Colour Corrector (CCR-8) - Remote

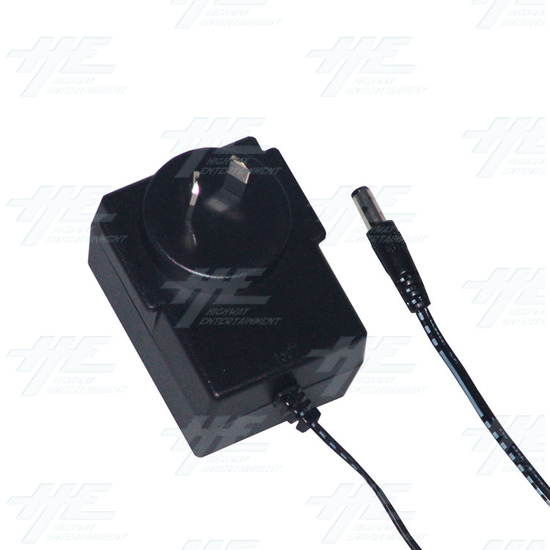

Multisystem Colour Corrector (CCR-8) - Power supply
Multisystem Colour Corrector (CCR-8) - Power supply

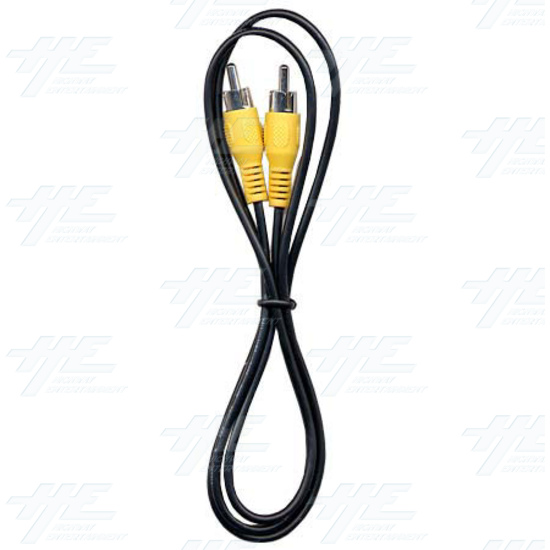

Multisystem Colour Corrector (CCR-8) - AV Cable
Multisystem Colour Corrector (CCR-8) - AV Cable

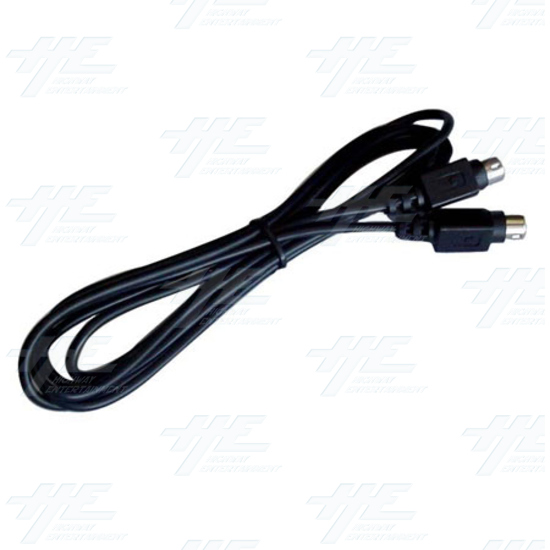

Multisystem Colour Corrector (CCR-8) - S-Video cable
Multisystem Colour Corrector (CCR-8) - S-Video cable

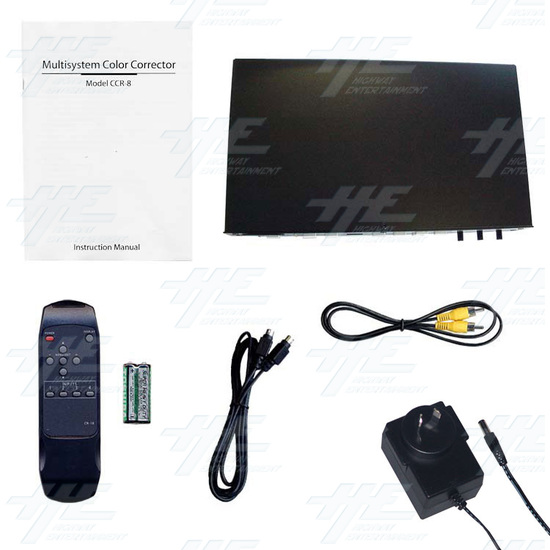

Multisystem Colour Corrector (CCR-8) - Full kit
Multisystem Colour Corrector (CCR-8) - Full kit
