A professional 20 inch LCD Monitor with 12vDC voltage that is suitable for Lowboy Cabinet or Cocktail Table. This monitor is an LG brand new, A grade monitor with 4:3 resolution. It is great for both high and low resolution games, and is a great replacement for any lowboy arcade machine.
It includes its own mounting frame, making this monitor easy to install into your arcade cabinet or for personal use. There is no need to have large amounts of technical skill due to the plug in components, making this monitor great for all skill levels. The monitor adjustment board makes changing the screen easy and simple, instead of having to unhook everything and reach behind the monitor.
It includes a HDMI port, VGA port, related signal cable, power cable and a driver PCB, with a metal case. This monitor is Rohs certified and the viewing angles are 89 degrees/ 178 degrees.
Supports 15khz, 31khz and up to 1080P.
<b>PLEASE NOTE</b>
- this is rated as "seconds"
- monitor has large stain on screen
- stain is very noticeable during graphic display
A professional 20 inch LCD Monitor with 12vDC voltage that is suitable for Lowboy Cabinet or Cocktail Table. This monitor is an LG brand new, A grade monitor with 4:3 resolution. It is great for both high and low resolution games, and is a great replacement for any lowboy arcade machine.
It includes its own mounting frame, making this monitor easy to install into your arcade cabinet or for personal use. There is no need to have large amounts of technical skill due to the plug in components, making this monitor great for all skill levels. The monitor adjustment board makes changing the screen easy and simple, instead of having to unhook everything and reach behind the monitor.
It includes a HDMI port, VGA port, related signal cable, power cable and a driver PCB, with a metal case. This monitor is Rohs certified and the viewing angles are 89 degrees/ 178 degrees.
Supports 15khz, 31khz and up to 1080P.
PLEASE NOTE
this is rated as "seconds"
monitor has large stain on screen
stain is very noticeable during graphic display
Unit Dimensions :
49.0W x 6.0D x 34.0H cms
Condition :
New
Shipping Weight :
10.400 kg
Voltage :
12vDC
Location :
Australia
Plug Type :
Australian Model
Packing Terms :
Bubble Wrap
Warranty :
No Warranty
Product Type :
Monitors & Chassis
Certificates :
CE, CTick, UL
20 inch LCD Monitor - Seconds - A14 Specifications / Features
Power Consumption: Total 36.05 Watt(Typ.) (6.65 Watt@VLCD, 29.4 Watt@300cd/[LAMP=7mA])
Weight: 3200 g (Typ.)
Display Operating Mode: Transmissive mode, normally black
Surface Treatment: Hard coating (3H), Anti-glare treatment of the front polarizer

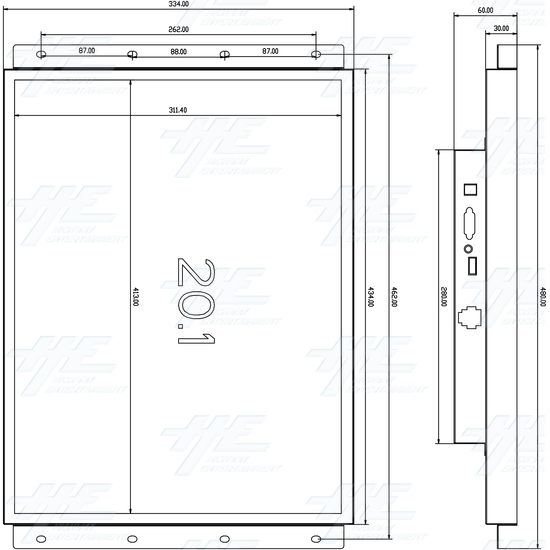

Outline Dimension: 434.0 (H) x 334.0 (V) x 30.0 (D) mm(Typ.)
Active Screen Size: 20.1 inches (510.54mm) diagonal
Response Time: 1.9 milliseconds
Monitor Brand: LG
Brand: Arcooda
Connectors:
VGA
HDMI
Resolutions Supported:
15khz (Jamma standard)
31khz VGA
up to 1080P
Table 1: ABSOLUTE MAXIMUM RATINGS
Operating Ambient Humidity HOP 10 90 %RH 1
Storage Humidity HST 10 90 %RH 1
Storage Temperature TST -20 60 °C 1
Operating Temperature TOP 0 50 °C 1
Power Input Voltage VLCD -0.3 23.0 Vdc at 25 ± 2 °C
Note : 1. Temperature and relative humidity range are shown in the figure below; Wet bulb temperature should be 39 °C Max, and no condensation of water
Includes:
Monitor Adjustment Menu PCB
VGA Cable
9 Pin Extension Harness
Power supply and Power Cable
20 inch LCD Monitor - Seconds - A14 - Actual Images
20 inch LCD Monitor - Seconds - A14 - Angle View
20 inch LCD Monitor - Seconds - A14 - Front View
20 inch LCD Monitor - Seconds - A14 - Connections
20 inch LCD Monitor - Seconds - A14 - Top & Bottom View
20 inch LCD Monitor - Seconds - A14 - Left & Right View
