The D.Gottlieb & Co. System 80/80a Bench Test Fixture provides complete test capabilities for the electronic sub-assemblies used in the System 80 games, including the Control Board, Master Driver Board, Power Supply, Display Boards and Sound Board.
The Bench Test Fixture is a compact unit which includes an internal Control Board and Power Supply and a 4 digit Display Board. Switches are provided on the base panel to select either the internal Control Board or a Control Board under test.
About D.Gottlieb & Co. System 80/80A Bench Test Fixture
The D.Gottlieb & Co. System 80/80a Bench Test Fixture provides complete test capabilities for the electronic sub-assemblies used in the System 80 games, including the Control Board, Master Driver Board, Power Supply, Display Boards and Sound Board.
The Bench Test Fixture is a compact unit which includes an internal Control Board and Power Supply and a 4 digit Display Board. Switches are provided on the base panel to select either the internal Control Board or a Control Board under test.
Unit Dimensions :
64.5W x 62.5D x 65.0H cms
Condition :
Used
Shipping Weight :
52.406 kg
Location :
Australia
Warranty :
7 days testing warranty
Product Type :
Pinball Spare Parts
D.Gottlieb & Co. System 80/80A Bench Test Fixture - Actual Images
D.Gottlieb & Co. System 80/80A Bench Test Fixture - System 80/80a Bench Test Fixture - Angle View
D.Gottlieb & Co. System 80/80A Bench Test Fixture - System 80/80a Bench Test Fixture - Front View
D.Gottlieb & Co. System 80/80A Bench Test Fixture - System 80/80a Bench Test Fixture - Angle View
D.Gottlieb & Co. System 80/80A Bench Test Fixture - Header Panel

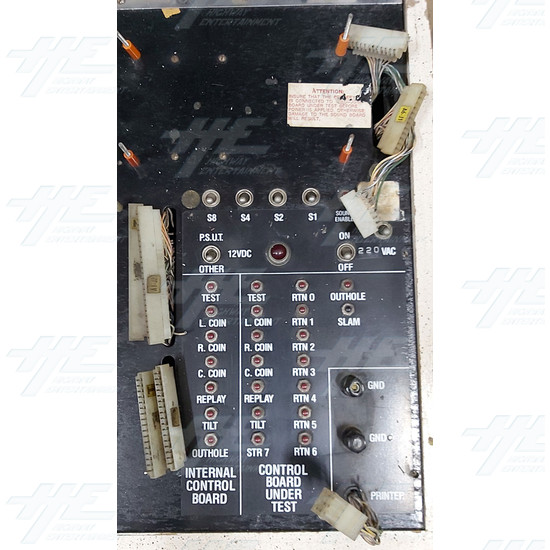

D.Gottlieb & Co. System 80/80A Bench Test Fixture - Body Switch Panel

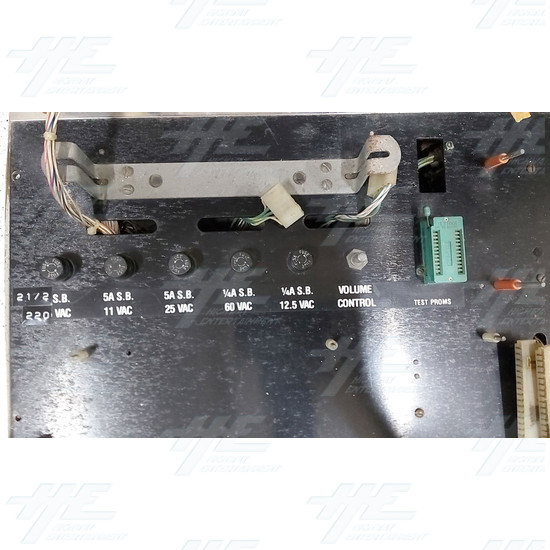

D.Gottlieb & Co. System 80/80A Bench Test Fixture - Header Left Detail 1
D.Gottlieb & Co. System 80/80A Bench Test Fixture - Header Left Detail 2

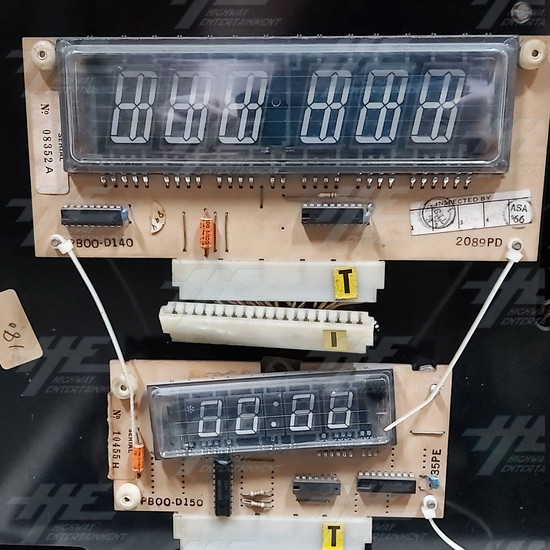

D.Gottlieb & Co. System 80/80A Bench Test Fixture - Header Right Detail 1

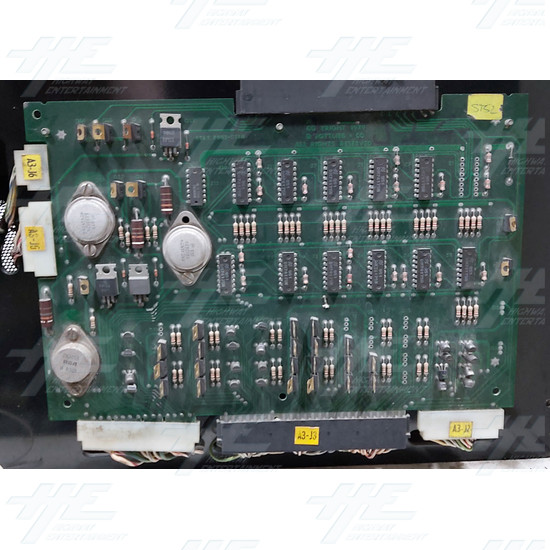

D.Gottlieb & Co. System 80/80A Bench Test Fixture - Header Right Detail 2
D.Gottlieb & Co. System 80/80A Bench Test Fixture - Body Left Detail
D.Gottlieb & Co. System 80/80A Bench Test Fixture - Body Right Detail
